ASTM A615 Reinforcing Bar Grade 60

Unlike the former two kinds, ASTM A615 is a deformed steel standard categorized under American standards. These are generally available in diameter between 9.5 mm and 43 mm, and length between 6 m and 12 m. Generally, the steel bars that fall under this standard are under deformed or plain carbon steel. The grades that fall within this standard are Grade 40, Grade 60, Grade 75, and Grade 80.

Classification :

Steel Rebar

+86-19963884193

sales01@szcnsteel.com

E-mail

ASTM A615 Reinforcing Bar Grade 60 Description

ASTM A615 Steel Rebar increases the tensile strength of concrete and can be used for both primary and secondary reinforcement. It helps absorb stress and weight and facilitates the more even distribution of the tension caused by the expansion and contraction of concrete when it is exposed to heat and cold, respectively.

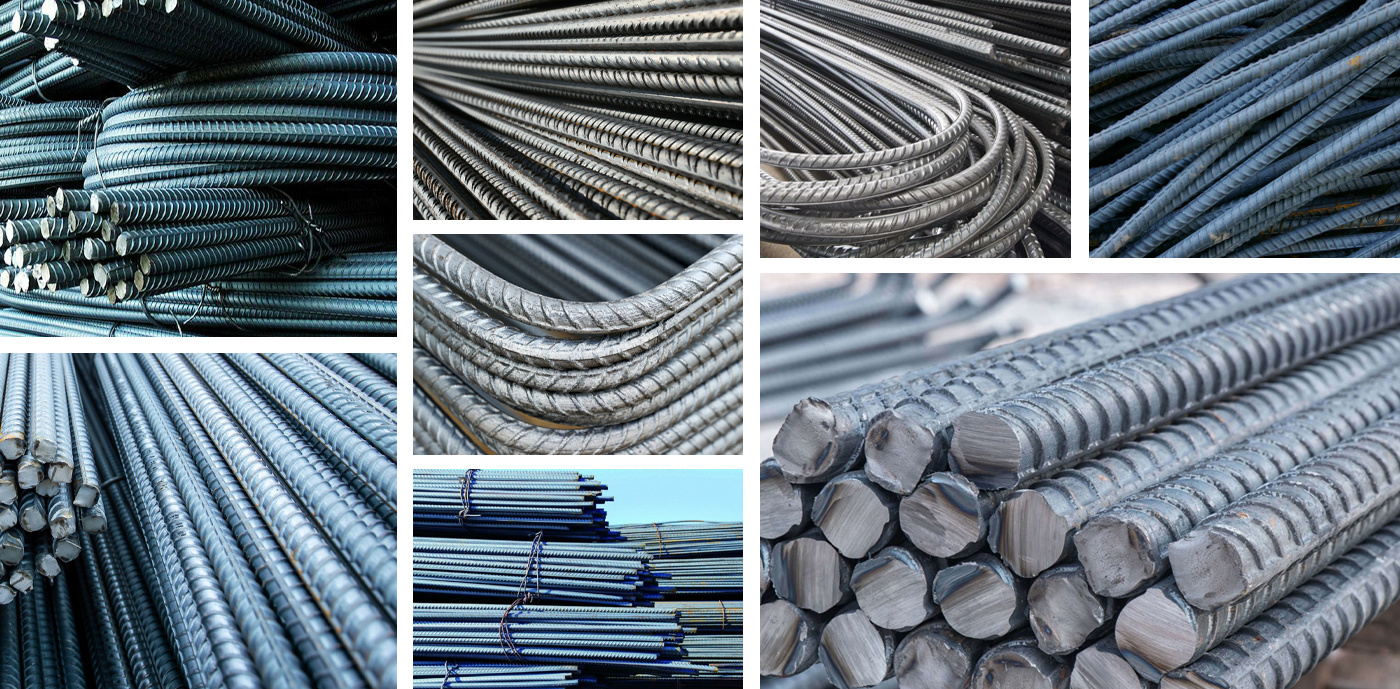

ASTM A615 Steel Rebar has a rough, blue-grey finish with raised ribs throughout the bar. ASTM A615 Grade 60 Steel Rebar offers enhanced yield strength of at least 60 thousand pounds per square inch, or 420 megapascals on the metric grading scale. It also features a continuous line system, with one line running along the length of the bar which is offset a minimum of five spaces from the center. These characteristics make Grade 60 Steel Rebar particularly well-suited for medium to heavy-duty concrete reinforcement applications.

ASTM A615 American Rebar Specifications
DIMENSION ( mm. )	LENGTH ( m. )	NUMBERS OF REBARS (QUANTITY)	ASTM A 615 / M Grade 60
DIMENSION ( mm. )	LENGTH ( m. )	NUMBERS OF REBARS (QUANTITY)	Kg / m.	THEORETICAL WEIGHT OF BUNDLE ( Kg. )
8	12	420	0.395	1990.800
10	12	270	0.617	1999.080
12	12	184	0.888	1960.704
14	12	136	1.208	1971.456
16	12	104	1.578	1969.344
18	12	82	2.000	1968.000
20	12	66	2.466	1953.072
22	12	54	2.984	1933.632
4	12	47	3.550	2002.200
25	12	42	3.853	1941.912
26	12	40	4.168	2000.640
28	12	33	4.834	1914.264
30	12	30	5.550	1998.000
32	12	26	6.313	1969.656
36	12	21	7.990	2013.480
40	12	17	9.865	2012.460

Scope of Application

Widely used in houses, bridges, roads, especially railways and other civil engineering.

Packing and delivery

It relies on its product, price, service and location advantages to establish long-term cooperation with many clients in North America, South America, Europe, Southeast Asia, the Middle East and Africa, and has established a business foundation in Peru, the Philippines, Russia and elsewhere.
